K&M 19420
Artikelnummer 25519420Speaker mount, attaches to ceiling, steel, black.
1025 kr./stk

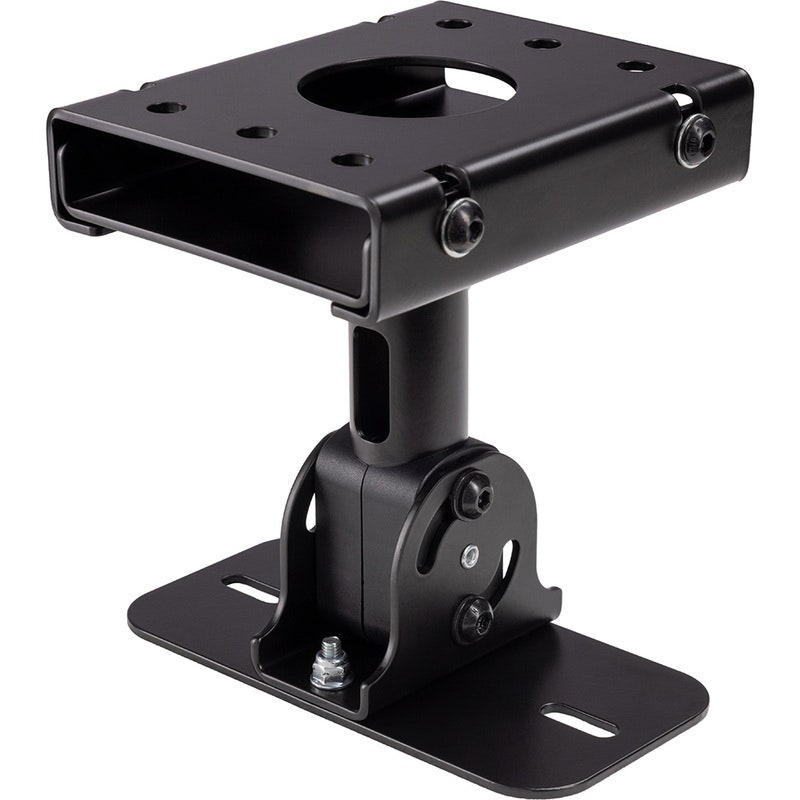

Konig & Meyer 19420 - Speaker ceiling mount
The speaker ceiling mount allows equipment to be installed on a ceiling. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking.
Direct fit: DBR15, DBR12, DBR10, CBR15, CBR12, CBR10, HS8I, HS7I
Requires Yamaha's U-bracket: DZR12, DZR10, CZR15, CZR12, CZR10, DXR12mkII, DXR10mkII, DXR8mkII, DHR12, DHR10, CHR12, CHR10
Specifications 19420:
- Adjustment: Continuous
- Angle of inclination: 0° to 75°
- Bearing plate: 180 x 90mm
- Ceiling clearance: 180mm
- Ceiling mounting plate: 160 x 126mm
- Weight: 2,2kg
- Material: Steel
- Max. load capacity: 25kg
- Mounting: Attaches to ceilings
- Spacing of holes: 60 - 70mm or 115 - 150mm
- Swivel: 90°
- Finish: Black
- MPN: 19420-000-55
