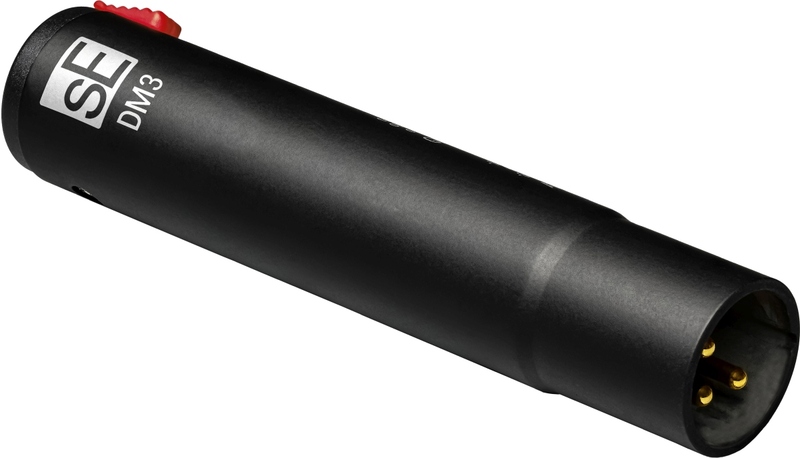

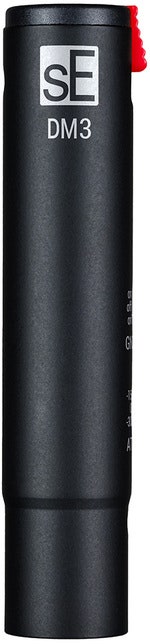

sE Electronics DM3 Black - Active Direct Box

Black Active Inline Direct Box

Active, inline Direct Box with Ultra-HiZ input and an impressively compact design - in many ways, the DM3 will prove to be your key to great sound!
Recommeded to use for Electric guitar, bass guitar, piezo pickups, keyboard, synthesizers, drum machines, laptops.

• Black Finish
• Ultra-HiZ input for getting the best out of your instrument
• Massive headroom for even the hottest instruments

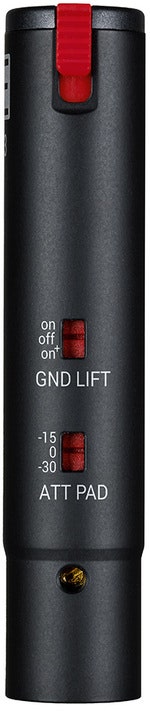

• A new standard to the ground lift switch
• Lockable ¼” input jack to prevent accidental disconnects
• Dedicated Class-A output buffer amplifier and premium finish
• Slim, all-metal discrete housing and gold XLR connectors


Specifications:

Power:

• Electrical Impedance: 86 Ohms
• Recommended Load Impedance: >1K Ohms
• Connectivity Input: 6.3 mm (1/4 in.) TRS jack
• Output: 3-pin male XLR connector
• Powering:48V Phantom Power (P48 according to IEC 61938)

Sound:

• Frequency range:10 Hz - 120 kHz (-0.3 dB)
• Current consumption:3.8 mA
• Max input level: (0.5% THD)19 / 34 / 49 dBV (9.0 / 51 / 285 V)
• Output noise level: 1 μV

Dimensions:

• Diameter: 20 mm
• Length: 95.5 mm
• Weight: 70 g

What's in the box:

• DM3 BK
• Screwdriver
• sE 1/4" plug keychain
• sE Logo Sticker
• User manual
