ROLLS MX153

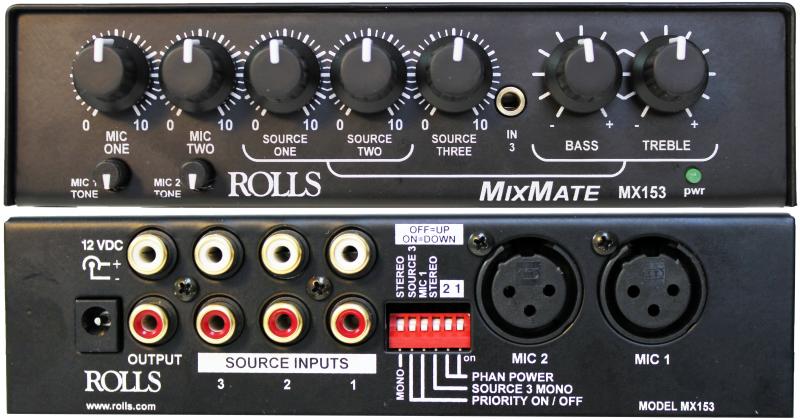

The MX153 is a one-half rack space, two microphone and three stereo source mixer. The unit provides a compact and efficient way to mix sources such as AM/FM tuners, CD players, and video players with dynamic or condenser microphones.

Applications include background music and paging for small clubs, churches, schools, restaurants, etc. Each microphone channel has a Level and Tone control. Sources One and Two have Level adjustments and pass through combined Bass and Treble controls. Source Three has a Level adjustment only. The Microphone inputs are balanced XLR jacks, all Source inputs are stereo RCA except for the front 1/8 jack on CH3 for an MP3 player, etc.

The main output is stereo RCA. An included 12VDC adapter (Rolls PS27) provides power to the unit. A series of six DIP switches provide important features to the MX153. Two switches apply the 12VDC of phantom power to the individual Microphone Inputs. A second switch sums the program material of Source Three to mono, and a third sums the overall output to mono. Another switch provides priority ducking to Source Three input allowing that channel to mute the other source inputs for use with a jukebox.

The final switch configures Microphone Input One as a paging input, ducking the other microphone and Sources One and Two.

• Two Mic inputs with available phantom power
• Treble or Bass cut controls for each mic
• Three stereo source inputs
• Bass and Treble controls on source 1 & 2
• Signal muting (ducking) on mic 1 & source 3
• Switchable Mono or Stereo mode on unbalanced outputs
• Uses 12VDC power for easy use in mobile applications
