K&M 19430
Artikelnummer 25519430Speaker mount, attaches to wall, steel, black.
1275 kr./stk

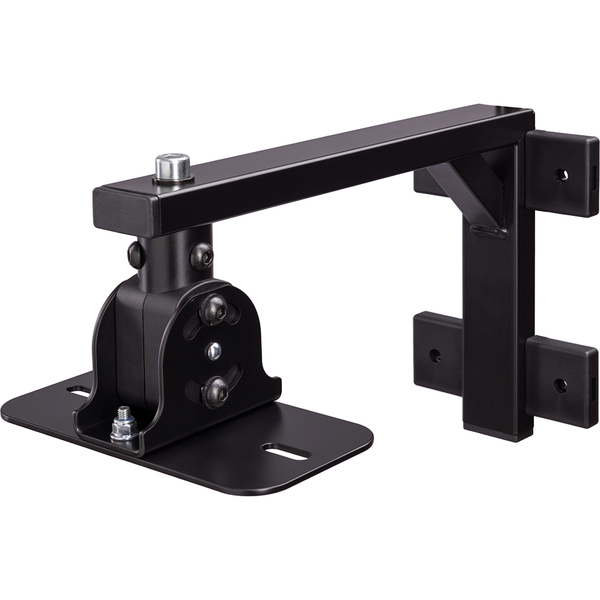

Konig & Meyer 19430 - Short arm speaker wall mount
The speaker wall mount allows equipment to be installed on a wall. Compatible with the Yamaha loudspeakers below, this bracket allows the position and angle of the speakers to be easily adjusted. Easy mounting by convenient hooking in and screw locking.
Direct fit: DBR12, DBR10, CBR12, CBR10, HS8I, HS7I
Requires Yamaha's U-bracket: DZR10, CZR10, DXR10mkII, DXR8mkII, DHR10, CHR10
Specifications 19430:
- Adjustment: Continuous
- Angle of inclination: -45° to 45°
- Bearing plate: 180 x 90mm
- Weight: 2,3kg
- Material: Steel
- Max. load capacity: 25kg
- Mounting: Attaches to walls
- Spacing of holes: 60 - 70mm or 115 - 150mm
- Swivel: 360°
- Finish: Black
- Wall clearance: 271mm
- MPN: 19430-000-55
